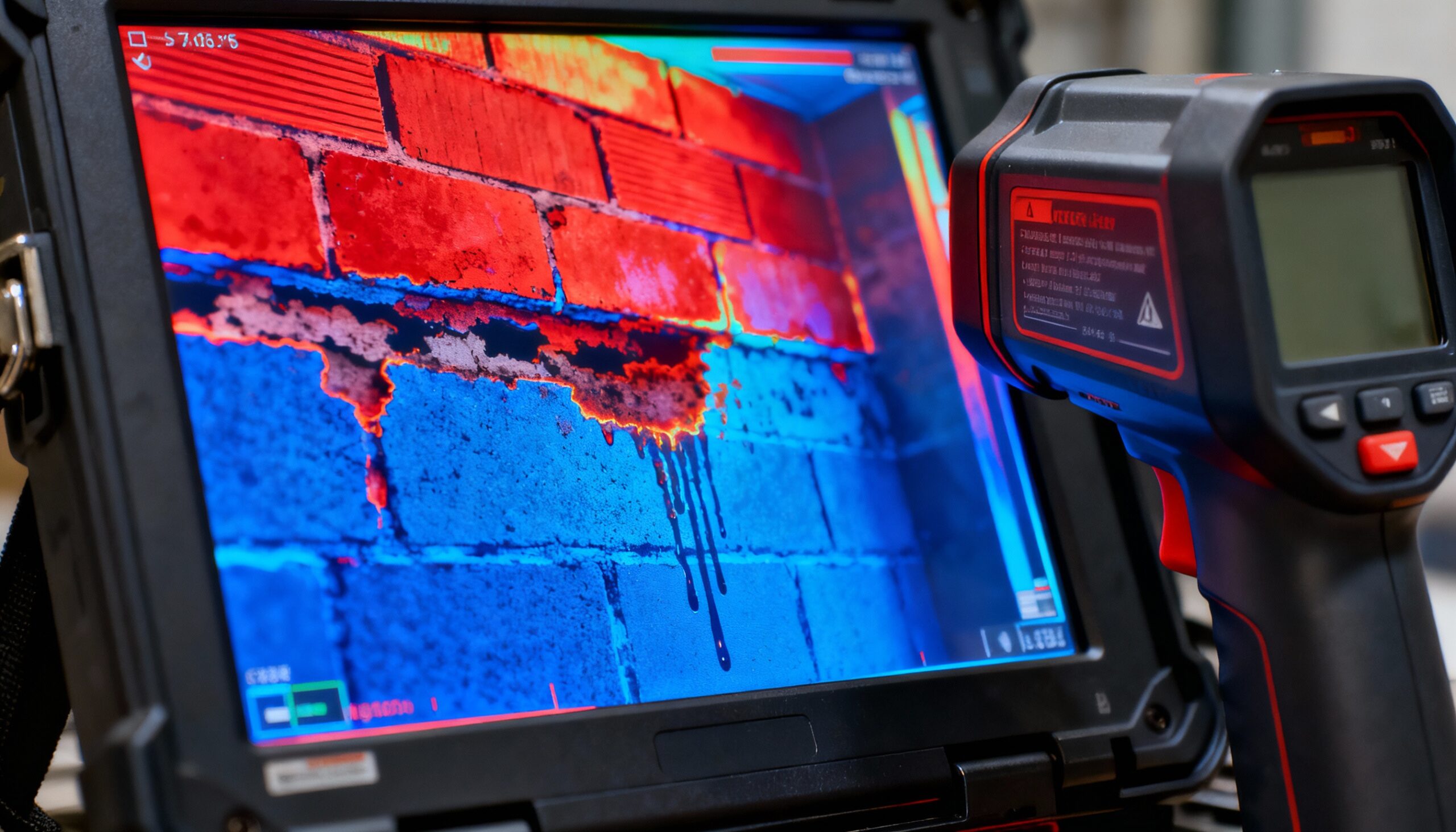

The Physics of Infrared Moisture Detection
Thermodynamic Principles
Thermal imaging water detection operates on fundamental thermodynamic principles related to heat transfer, evaporative cooling, and material thermal properties. Professional thermal imaging water detection systems leverage these principles to identify moisture through temperature differential analysis. When moisture infiltrates building materials, thermal imaging water detection technology identifies detectable temperature differentials through three primary mechanisms: evaporative cooling as water transitions from liquid to vapor phase, different thermal conductivity values between wet and dry materials, and altered thermal mass affecting temperature response rates.
The evaporative cooling relationship can be expressed as: Qevap = ṁ × hfg, where Qevap is the evaporative heat transfer rate (BTU/hr), ṁ is the mass evaporation rate (lb/hr), and hfg is the latent heat of vaporization (approximately 1,050 BTU/lb). This effect typically produces temperature differentials of 2-10°F between wet and dry materials, though variations depend on ambient conditions. Understanding these thermodynamic relationships is crucial for accurate thermal imaging water detection and proper interpretation of thermal data in thermal imaging water detection surveys.
Electromagnetic Spectrum and Infrared Radiation
Thermal imaging cameras detect electromagnetic radiation in the longwave infrared region (8-14 micrometers). All objects emit infrared radiation proportional to their surface temperature, following the Stefan-Boltzmann law: E = ε × σ × T4, where E is radiant emittance, ε is emissivity (0-1), σ is the Stefan-Boltzmann constant, and T is absolute temperature. Common building materials exhibit emissivity values of 0.85-0.95, while metallic surfaces range from 0.10-0.30. Proper emissivity compensation is essential for accurate temperature measurement during thermal imaging water detection operations.
Modern thermal imaging water detection systems utilize microbolometer detector arrays producing thermal images with temperature resolution of 0.09°F or better. This thermal sensitivity, combined with spatial resolution of 320×240 pixels or higher, enables thermal imaging water detection of subtle temperature variations indicative of moisture intrusion in building assemblies.
Thermal Imaging Equipment Specifications
Critical Performance Parameters
Professional-grade thermal imaging water detection cameras must meet specific performance criteria to ensure reliable moisture assessment results. The effectiveness of thermal imaging water detection depends on equipment specifications including thermal sensitivity (NETD), spatial resolution, temperature range, field of view, and focus capabilities. Selection of appropriate thermal imaging water detection equipment depends on application requirements, building complexity, and documentation needs. Understanding performance parameters enables informed equipment selection for thermal imaging water detection programs.
| Specification Parameter | Entry-Level Systems | Professional Systems | Advanced Diagnostic Systems |
|---|---|---|---|
| Thermal Sensitivity (NETD) | ≤0.18°F | ≤0.09°F | ≤0.05°F |
| Detector Resolution | 160×120 pixels | 320×240 pixels | 640×480+ pixels |
| Temperature Range | -4°F to +482°F | -40°F to +932°F | -40°F to +2192°F |
| Field of View | 25° × 19° | 32° × 23° | 42° × 32° (with lens options) |
| Measurement Accuracy | ±3.6°F or ±2% | ±1.8°F or ±1% | ±0.9°F or ±0.5% |
| Image Frequency | 9 Hz | 30 Hz | 60 Hz |
Thermal sensitivity, measured as Noise Equivalent Temperature Difference (NETD), determines the camera’s ability to distinguish small temperature variations. For thermal imaging water detection applications, thermal sensitivity of 0.09°F or better is recommended to identify subtle evaporative cooling patterns indicative of moisture intrusion. Higher detector resolution provides improved spatial detail in thermal imaging water detection, enabling identification of smaller moisture patterns and more precise mapping of affected areas. Professional thermal imaging water detection requires equipment meeting or exceeding these performance specifications for reliable diagnostics.
📊 Technical Note: Thermal sensitivity and spatial resolution represent independent performance parameters in thermal imaging water detection. A camera with excellent thermal sensitivity but poor spatial resolution may detect temperature differences but lack the detail needed to accurately map moisture patterns in complex building assemblies.
Lens Systems and Optical Considerations
Thermal imaging water detection systems utilize germanium or chalcogenide glass lens elements optimized for longwave infrared transmission. Standard lens configurations for thermal imaging water detection include wide-angle lenses (42° FOV) for comprehensive surveys, standard lenses (25-32° FOV) for general inspection, and telephoto lenses (6-15° FOV) for detailed analysis. Focus mechanisms include manual, automatic, and fixed-focus designs, with automatic systems improving operational efficiency during thermal imaging water detection surveys. Minimum focus distance typically ranges from 0.15m to 0.50m depending on lens configuration.
Moisture Detection Methodology
Survey Protocol Development
Effective thermal imaging water detection requires systematic survey protocols accounting for environmental conditions, building characteristics, and moisture behavior patterns. Successful thermal imaging water detection programs implement standardized procedures ensuring consistent results across different projects and technicians. Pre-survey preparation for thermal imaging water detection includes obtaining building plans, identifying moisture sources, and establishing baseline environmental conditions. Optimal survey conditions for thermal imaging water detection occur when temperature differentials between wet and dry materials are maximized, typically during active evaporation periods. Professional thermal imaging water detection surveys conducted during high relative humidity (>70% RH) may show reduced temperature differentials due to suppressed evaporation rates.
Scan Pattern Methodology

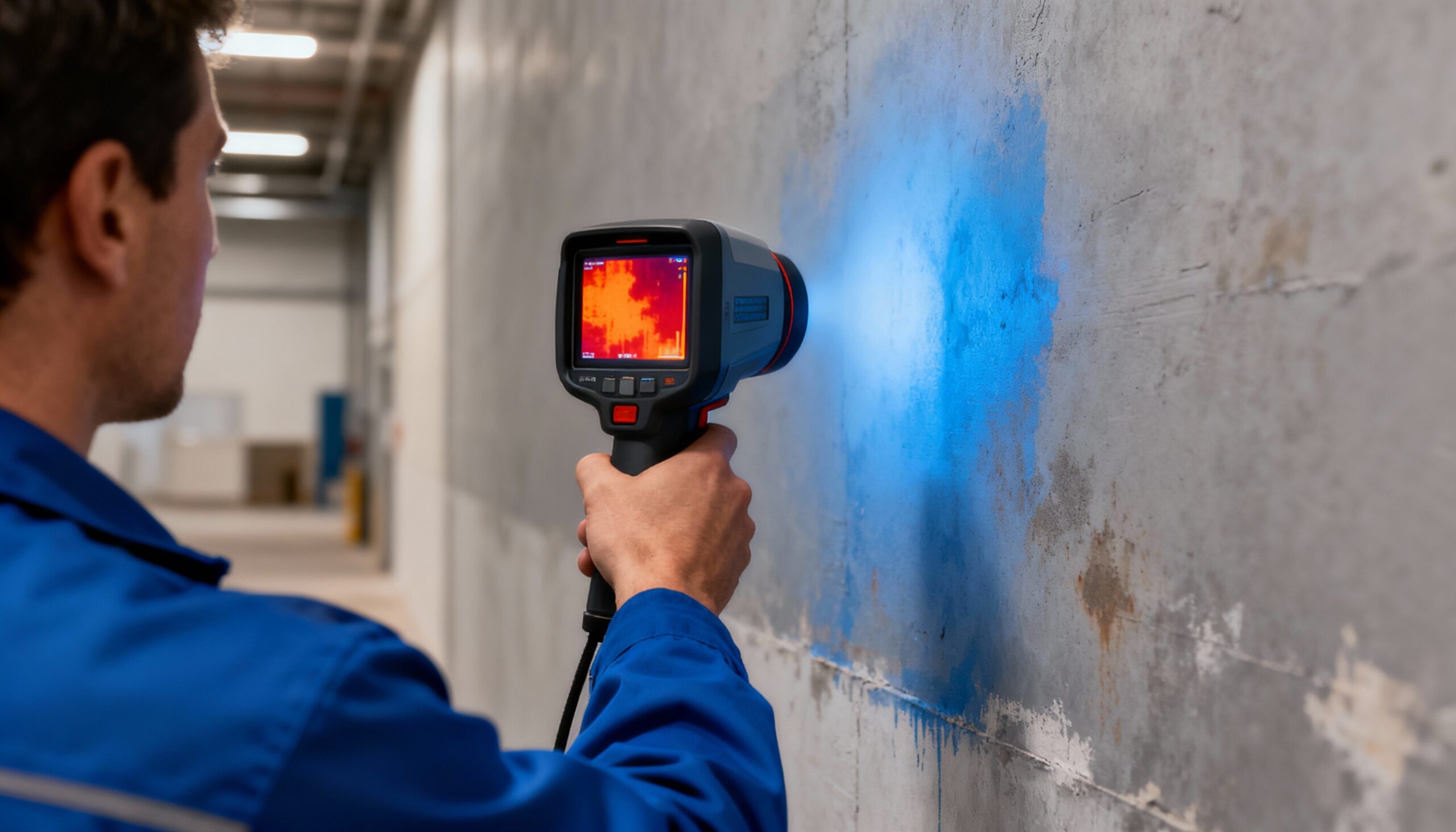

Systematic scan patterns ensure comprehensive coverage during thermal imaging water detection surveys. Professional thermal imaging water detection technicians should scan wall surfaces in overlapping passes, maintaining consistent camera-to-surface distances of 1-3 meters for optimal spatial resolution. Critical inspection zones for thermal imaging water detection include exterior wall assemblies (focus on areas below windows and penetrations), roof systems (examine drains and equipment penetrations), below-grade structures (scan foundation walls and basement floors), and mechanical systems (inspect plumbing fixtures and HVAC equipment where leaks frequently occur requiring commercial water cleanup services).
Data Interpretation and Analysis
Interpretation of thermal imaging water detection data requires understanding heat transfer mechanisms, moisture behavior, and potential false positive sources. Successful thermal imaging water detection depends on accurate interpretation of thermal patterns and temperature differentials. Genuine moisture patterns identified through thermal imaging water detection typically exhibit irregular boundaries, gradual temperature transitions, and cooler temperatures than surrounding dry materials. Temperature differences of 2-5°F suggest possible moisture requiring verification, while differences exceeding 5°F typically indicate significant moisture content detected through thermal imaging water detection. Temporal analysis involving repeated thermal imaging water detection scans over time provides valuable diagnostic information about ongoing water intrusion versus residual moisture.
| Thermal Pattern Characteristic | Moisture Indication | Potential False Positive | Verification Method |
|---|---|---|---|
| Irregular cool patterns | High probability moisture | Air infiltration, thermal bridging | Contact moisture meter, visual inspection |
| Linear cool patterns | Plumbing leak, roof drainage issue | Structural thermal bridge | Destructive inspection if needed |
| Uniform cool areas | Broad moisture infiltration | HVAC influence, shading effects | Relative humidity measurement |
| Warm patterns | Hidden active leak (warm water) | Electrical issues, HVAC ductwork | Temperature differential monitoring |
Integration with Comprehensive Moisture Assessment
Multi-Modal Detection Strategy
Professional moisture assessment integrates thermal imaging water detection with complementary diagnostic technologies. This multi-modal approach combining thermal imaging water detection with other methodologies compensates for individual technology limitations and provides corroborating evidence for moisture presence. Contact-type moisture meters provide quantitative moisture content measurements correlating with thermal imaging water detection findings. Non-invasive microwave moisture meters detect subsurface moisture not apparent in thermal imaging water detection surface temperature patterns. Thermal imaging water detection provides spatial overview identifying areas requiring detailed investigation, while contact measurements provide quantitative verification. This integrated approach combining thermal imaging water detection with contact measurements forms the foundation of professional moisture assessment and mold removal protocols.
Documentation and Reporting
Comprehensive documentation of thermal imaging water detection findings requires annotated thermal images, quantitative temperature data, and verification measurements. Digital thermal imaging water detection files should maintain radiometric format enabling post-processing analysis. Effective thermal imaging water detection reports include visible light reference photographs paired with thermal images for spatial context. Time-stamped thermal imaging water detection documentation creates litigation-quality records supporting restoration scopes and insurance claims. Sequential thermal imaging water detection throughout restoration demonstrates moisture removal progress and validates drying completion, particularly critical in healthcare facilities requiring stringent documentation standards.
Case Study: Commercial Building Envelope Investigation
Project Overview
A 120,000 square foot commercial office facility experienced recurring interior moisture damage affecting multiple floors. Visual inspection identified water staining, but the moisture source remained unidentified after conventional investigation methods. Thermal imaging water detection was deployed to identify hidden moisture pathways and determine the root cause of ongoing water intrusion. The facility management team selected thermal imaging water detection based on its non-invasive diagnostic capabilities and comprehensive spatial mapping features. The building featured a modern curtain wall facade system with gypsum board interior partitions on metal stud framing, requiring emergency restoration services.
Technical Approach and Findings
Comprehensive thermal imaging water detection scanning was conducted during late afternoon when solar heating created optimal moisture detection conditions. A professional-grade thermal imaging water detection system with 320×240 detector resolution and 0.09°F thermal sensitivity was utilized. Thermal imaging water detection revealed extensive cool temperature patterns within interior wall assemblies, with temperature differentials of 6-8°F suggesting substantial moisture content identified through thermal imaging water detection analysis. The thermal patterns displayed vertical orientations correlating with curtain wall mullion locations, implicating water intrusion through the facade system. Follow-up investigation confirmed elevated moisture content readings of 18-24%, and targeted destructive testing disclosed failed sealant joints allowing water penetration during wind-driven rain events.
Performance Outcomes
Thermal imaging water detection provided the diagnostic insight needed to identify the moisture intrusion mechanism after conventional methods had failed. The thermal imaging water detection technology enabled efficient investigation of large building areas, identifying specific problem locations requiring corrective action. This thermal imaging water detection approach delivered conclusive results where traditional moisture investigation proved inadequate.
| Investigation Metric | Conventional Methods | Thermal Imaging Approach | Performance Improvement |
|---|---|---|---|
| Survey Area Coverage | 2,000 sq ft/day | 15,000 sq ft/day | 750% increase |
| Moisture Source Identification | Inconclusive | Definitive location | Problem resolution |
| Destructive Testing Required | 15 test locations | 3 verification locations | 80% reduction |
| Investigation Duration | 8 days (incomplete) | 2 days (conclusive) | 75% time reduction |
The investigation enabled targeted repairs addressing actual failure mechanisms rather than symptomatic treatments. Subsequent monitoring using follow-up thermal scans verified effective moisture intrusion elimination and validated building envelope performance.
Advanced Applications and Emerging Technologies
Drone-Based Thermal Imaging
Unmanned aerial systems equipped with thermal cameras enable efficient inspection of large roof areas and building facades. Drone-based infrared moisture detection overcomes safety and access limitations, particularly on commercial facilities with extensive roof systems. Professional UAV platforms feature radiometric cameras with GPS geotagging and automated flight path planning. Regulatory compliance requires licensed drone operators and adherence to airspace restrictions.
Artificial Intelligence and Automated Moisture Detection
Machine learning algorithms trained on extensive thermal datasets automatically identify moisture patterns and classify severity. These AI-powered systems analyze thermal images in real-time, alerting technicians to suspect conditions. Deep learning neural networks recognize characteristic thermal signatures for different moisture scenarios including roof leaks, plumbing failures, and HVAC condensation issues. Cloud-based platforms enable remote review and collaborative interpretation, transforming infrared moisture detection into an integrated facility management component.
Limitations and Considerations
Physical and Environmental Limitations
Thermal imaging water detection cannot directly visualize moisture content but detects temperature differentials potentially caused by moisture presence. This fundamental limitation requires verification through complementary moisture detection methods. The technology provides excellent screening and mapping but does not replace quantitative moisture measurement. Surface moisture detection is more reliable than subsurface detection. Reflective surfaces produce unreliable readings due to low emissivity. Environmental factors including solar heating, HVAC operation, and air leakage can mask moisture-related patterns, requiring careful survey timing to ensure reliable results.
Operator Skill and Training Requirements
Effective thermal imaging water detection requires comprehensive understanding of thermographic principles, moisture behavior, and building science. Untrained operators may misinterpret thermal patterns or overlook subtle moisture indicators. Professional training programs provide theoretical knowledge and practical skills covering infrared physics, camera operation, survey methodology, and data interpretation. Ongoing skill development through continuing education maintains technical competency as technology evolves. Investment in operator training is as critical as equipment acquisition for successful programs.
Industry Trends and Future Developments
Equipment Miniaturization and Cost Reduction
Thermal imaging technology continues evolving toward smaller, lighter, and more affordable systems without sacrificing performance. Smartphone-compatible cameras provide entry-level capability at accessible price points, expanding adoption across the restoration industry. These compact systems maintain professional-grade thermal sensitivity while reducing size and weight by 60-80%. As manufacturing processes mature, equipment pricing continues declining while performance specifications improve, democratizing access to advanced moisture detection technology.
Integration with Building Automation Systems
Permanent installations integrated with building management systems enable continuous moisture monitoring in critical facility areas. Fixed-mount cameras monitor mechanical rooms, below-grade spaces, and roof penetrations, providing immediate leak detection capability. Automated systems compare current conditions against baseline thermal profiles, triggering alerts when temperature anomalies exceed programmed thresholds. Integration with IoT sensor networks creates comprehensive facility moisture management platforms for predictive maintenance, especially valuable in educational facilities and multi-building campuses.
Regulatory and Standards Evolution
Industry standards increasingly recognize thermal imaging as a preferred moisture detection methodology. Documentation requirements now specifically reference infrared thermography capabilities and applications. Professional qualifications define minimum equipment specifications and survey methodologies, promoting consistent application of the technology. Building codes and insurance requirements are beginning to incorporate thermal imaging water detection as standard practice for moisture verification, driving continued adoption throughout the restoration industry.
Frequently Asked Questions
What thermal sensitivity specification is required for effective moisture detection in building materials?
Professional moisture detection applications require thermal imaging systems with thermal sensitivity (NETD) of 0.18°F or better, with 0.09°F recommended for optimal performance. This sensitivity level enables detection of subtle temperature differentials of 2-5°F typically produced by evaporative cooling from moisture-laden building materials. Systems with thermal sensitivity exceeding 0.27°F may miss low-level moisture conditions or provide insufficient temperature resolution for confident moisture pattern identification in challenging environmental conditions.
How does relative humidity affect thermal imaging water detection capability?
Relative humidity significantly impacts evaporation rates from wet materials, directly affecting temperature differentials visible in thermal images. At high relative humidity levels (above 70% RH), evaporation rates decrease substantially, reducing evaporative cooling effects and potentially limiting detection capability. Optimal survey conditions occur at moderate relative humidity (40-60% RH) where evaporation proceeds readily, creating maximum temperature differences between wet and dry materials. Environmental conditioning to temporarily reduce indoor humidity can enhance sensitivity when high RH conditions limit detection performance.
Can thermal imaging detect moisture within concrete structures or behind ceramic tile?
Thermal imaging can detect moisture-related temperature patterns on surface materials, but detection of subsurface moisture depends on material thermal properties, moisture location depth, and environmental conditions. In concrete structures, moisture near the surface (within 2-3 inches) may produce detectable thermal patterns, particularly in thinner sections. Ceramic tile presents challenges due to low thermal conductivity and potential for thermal equilibration that masks moisture signatures. Multi-modal moisture assessment combining infrared detection with non-invasive microwave meters or contact moisture meters provides more reliable subsurface moisture detection in these materials.
What verification methods should accompany thermal imaging findings to confirm moisture presence?
All thermal anomalies suggesting moisture should be verified using complementary detection methods including pin-type or pinless contact moisture meters for quantitative moisture content measurement, non-invasive microwave moisture meters for subsurface detection, visual inspection for physical moisture indicators, and relative humidity measurements within affected materials or cavities when accessible. Verification measurements should be documented at multiple locations within anomaly areas and at dry reference locations for comparison. This multi-modal approach combining infrared scanning with verification measurements provides the corroborating evidence necessary for confident moisture diagnosis and appropriate restoration planning.
How should emissivity compensation be applied when scanning different building materials?
Most common building materials including drywall, wood, concrete, brick, and painted surfaces have emissivity values between 0.85-0.95, allowing use of a default emissivity setting of 0.90-0.95 for general moisture surveys. Metallic surfaces require emissivity adjustment to values between 0.10-0.30 depending on surface finish, or application of high-emissivity tape or coating to enable accurate temperature measurement. For moisture detection applications focused on relative temperature patterns rather than absolute temperature measurement, emissivity compensation is less critical as comparative analysis between areas identifies moisture-related cooling regardless of precise temperature values.
What spatial resolution is necessary for accurate moisture mapping in building investigations?
Detector resolution of 320×240 pixels represents the professional standard for building moisture investigations, providing adequate spatial detail for identifying moisture patterns and mapping affected areas from typical working distances of 1-3 meters. Higher resolution systems (640×480 pixels or greater) improve detection of small moisture areas and provide better definition of moisture boundaries, particularly valuable in large commercial facilities or complex building envelope investigations. Lower resolution systems (160×120 pixels) may be adequate for preliminary screening but lack the spatial detail necessary for comprehensive moisture mapping and documentation requirements.
How does thermal bridging create false positive moisture indications in thermal imaging surveys?
Thermal bridging occurs when conductive building materials create preferential heat transfer pathways through building assemblies, producing cool temperature patterns similar to moisture-related evaporative cooling. Metal studs in exterior walls, structural steel members, and concrete elements create characteristic linear or geometric thermal patterns visible in surveys. Unlike moisture patterns which typically display irregular boundaries and gradual temperature transitions, thermal bridging produces distinct linear patterns correlating with structural member locations. Understanding building construction details and recognizing characteristic thermal bridge patterns prevents misinterpretation of these features as moisture problems during infrared moisture detection surveys.
Professional Implementation Strategies
Successful integration of thermal imaging water detection into professional restoration practices requires appropriate equipment investment, comprehensive operator training, systematic survey protocols, and quality assurance procedures. Organizations should begin with entry-level thermal imaging water detection systems to develop experience before advancing to higher-performance equipment. Thermal imaging water detection programs should include written procedures documenting survey methodologies and reporting standards. These documented thermal imaging water detection processes ensure consistency and provide defensible technical documentation. Integration with existing moisture detection technologies maximizes diagnostic capability, as thermal imaging water detection excels at spatial mapping while contact meters provide quantitative verification. This complementary relationship combining thermal imaging water detection with traditional methods optimizes comprehensive moisture assessment programs and supports contents restoration services.
