What is the Structural Drying Process?
The structural drying process is a systematic approach to removing moisture from building materials and structures after water damage occurs. Unlike simple surface drying, this process addresses water that has penetrated porous materials like drywall, insulation, subflooring, and wooden framing.
Professional restoration technicians use the principles of psychrometry—the science of air and moisture relationships—to create optimal drying conditions. The process manipulates temperature, humidity, and airflow to accelerate evaporation and moisture removal from affected materials.
Standard structural drying involves three key mechanisms working together: evaporation (converting liquid water to vapor), dehumidification (removing moisture from the air), and air movement (transporting moisture-laden air away from wet surfaces). When balanced correctly, these mechanisms can reduce drying time from weeks to just days.
Why Professional Building Drying Matters
Attempting DIY drying for significant water damage often results in incomplete moisture removal. Research shows that hidden moisture is responsible for 80% of secondary water damage claims, including mold growth, structural weakening, and material deterioration.
Professional restoration companies use moisture meters and thermal imaging to detect water in hidden cavities that household fans and dehumidifiers cannot address. They also document the entire process for insurance purposes, providing the evidence needed to support your claim.
The health implications are equally important. Inadequate drying creates ideal conditions for mold colonization, which can begin within 24-48 hours in warm, humid environments. Professional moisture removal prevents these biological hazards before they become health threats.
How the Structural Drying Process Works
Professional building drying follows a precise methodology developed through decades of restoration science. Understanding this process helps property owners recognize quality restoration work and set realistic expectations.
Step 1: Initial Assessment and Inspection

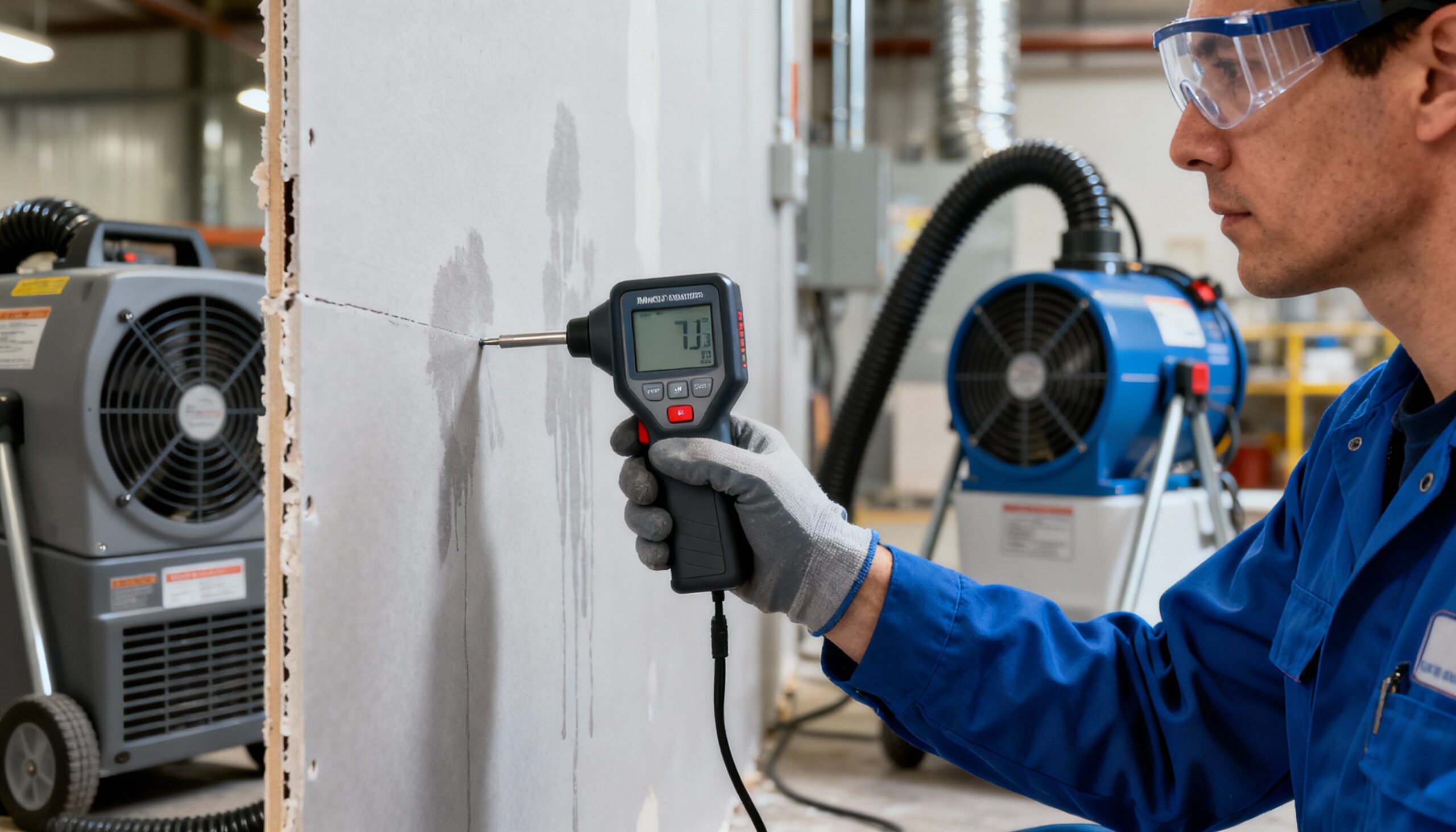

Restoration technicians begin with comprehensive moisture mapping using specialized detection equipment. Infrared cameras identify temperature variations that indicate trapped moisture, while penetrating moisture meters measure water content in materials like wood and drywall. This initial assessment is the foundation of an effective structural drying process.
This assessment determines the water damage classification (Class 1-4) and contamination category (Category 1-3), which directly impacts the drying strategy. Technicians also identify safety hazards, structural concerns, and materials that require removal versus those that can be dried in place.
Step 2: Water Extraction
Before structural drying begins, all standing water must be removed using extractors and pumps. Even thin layers of water on surfaces dramatically slow the drying process and increase humidity levels. Industrial water extractors can remove hundreds of gallons per hour, creating the foundation for effective drying.
Carpet and pad require specialized extraction techniques. Weighted extraction tools apply pressure while removing water, and truck-mounted extractors provide more powerful suction than portable units. The goal is reducing moisture content to below 50% before introducing air movers.
Step 3: Strategic Equipment Placement
Equipment positioning follows specific patterns based on psychrometric principles and airflow dynamics. Air movers are angled to create laminar airflow across wet surfaces without causing turbulence that wastes energy. The industry standard calls for one air mover per 10-15 feet of affected perimeter. Proper equipment placement is essential to the structural drying process and directly impacts drying efficiency.
Dehumidifiers are positioned to process the maximum volume of air while maintaining accessibility for drainage. In larger spaces, multiple units work together to maintain target humidity levels throughout the affected area.
Step 4: Controlled Drying Environment
The dehumidification process requires maintaining specific environmental conditions. Temperature typically stays between 70-90°F to optimize evaporation rates, while relative humidity is gradually reduced from initial levels (often 60-80%) down to 30-50%.
Technicians may employ containment strategies using plastic sheeting to isolate affected areas. This prevents moisture migration to unaffected spaces and makes dehumidification more efficient by reducing the total air volume requiring treatment.
Step 5: Continuous Monitoring
Daily moisture readings track drying progress and identify problem areas. Technicians measure both atmospheric conditions (temperature, relative humidity, dew point) and material moisture content at consistent locations throughout the space. Continuous monitoring throughout the structural drying process ensures optimal results and prevents complications.
This data reveals drying trends and allows for equipment adjustments. If drying rates slow or plateau, technicians can reposition equipment, add capacity, or address hidden moisture pockets that weren’t initially detected.
Step 6: Verification and Documentation
Drying is complete when moisture content in all affected materials matches readings from unaffected reference areas. Professional standards require multiple readings from different material types to confirm thorough drying. Final thermal imaging scans verify no hidden moisture remains in wall cavities or structural spaces.
Comprehensive documentation includes initial and final moisture readings, daily monitoring logs, equipment placement photos, and psychrometric calculations. This paperwork serves as proof of proper drying for insurance claims and provides protection against future moisture-related issues.
Types of Drying Equipment and Their Functions
Professional restoration companies deploy specialized equipment designed for specific drying challenges. Understanding these tools helps property owners recognize quality restoration work.
| Equipment Type | Primary Function | Best Applications | Key Features |
|---|---|---|---|
| Axial Air Movers | Create high-velocity airflow across surfaces | Carpet, hard floors, wall surfaces | Stackable, adjustable angles, 2000-3000 CFM |
| Centrifugal Air Movers | Direct focused airflow into tight spaces | Cabinets, wall cavities, under counters | Compact design, focused stream, lower CFM |
| Refrigerant Dehumidifiers | Remove moisture in moderate conditions | Residential spaces, occupied buildings | Efficient above 60°F, quieter operation |
| Desiccant Dehumidifiers | Extreme moisture removal and low humidity | Commercial spaces, cold environments | Works below 60°F, very low humidity capability |
| Low-Grain Refrigerant (LGR) | Aggressive moisture removal efficiently | Severe water damage, fast drying needs | Removes moisture to very low levels |
| Injectidry Systems | Targeted drying in enclosed spaces | Wall cavities, floors, ceilings | Minimally invasive, prevents demolition |

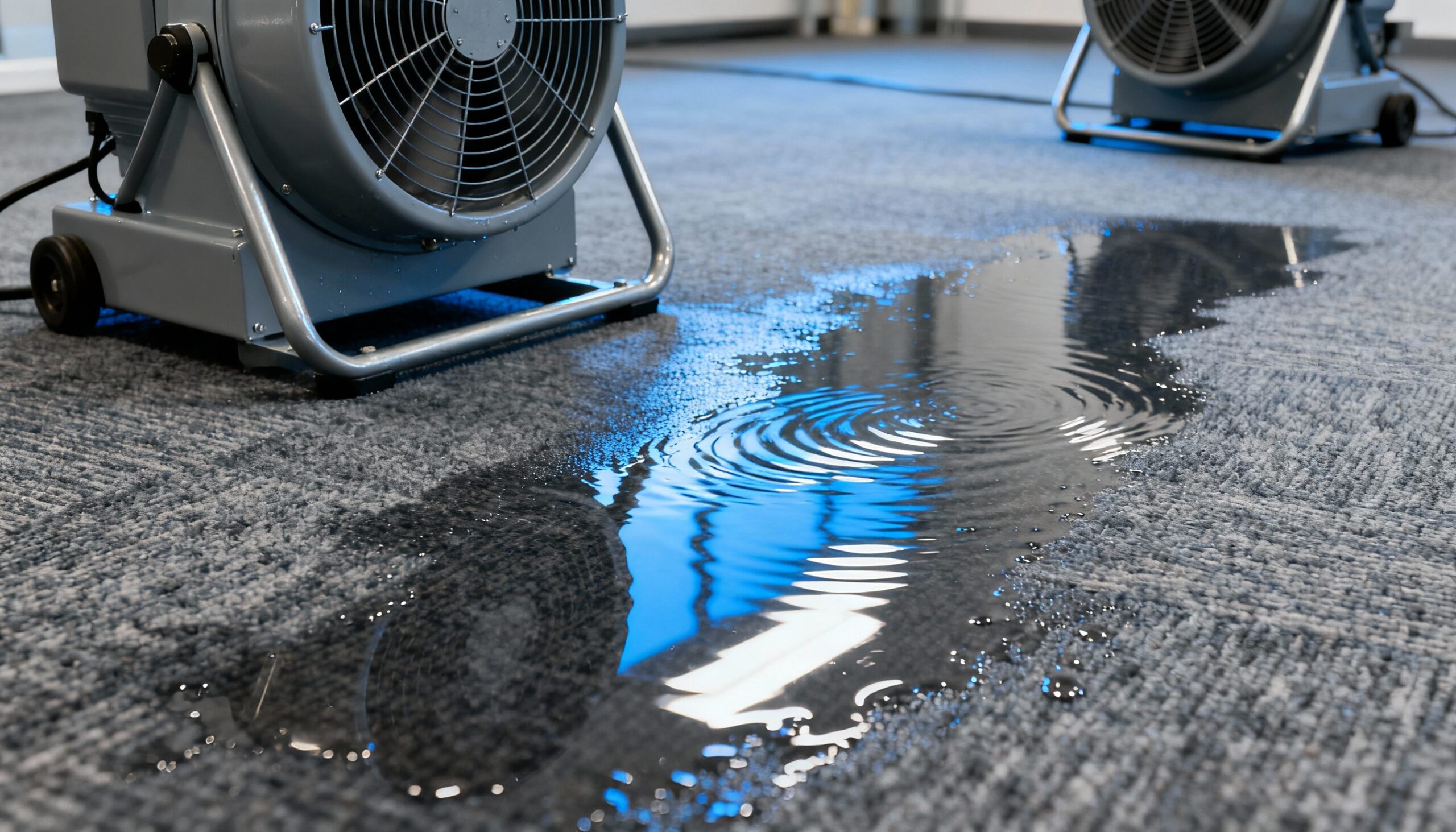

Air Mover Technology
Air movers accelerate evaporation by constantly replacing moisture-saturated air at wet surfaces with drier air. High-velocity airflow breaks through the boundary layer—a thin film of still air that naturally forms on surfaces and slows evaporation. Air movers are fundamental equipment in any professional structural drying process.
Modern air movers feature variable speed controls, allowing technicians to adjust airflow based on material sensitivity and drying stage. Lower speeds work for delicate finishes during late-stage drying, while maximum speeds tackle initial moisture removal.
Dehumidification Technology
Refrigerant dehumidifiers work like air conditioners, cooling air below its dew point to condense moisture. These units excel in typical residential conditions where temperature and humidity stay within moderate ranges. They’re energy-efficient and effective for most water damage scenarios.
Desiccant dehumidifiers use moisture-absorbing materials to pull water from the air, then regenerate through heating. They maintain effectiveness in cold environments and can achieve extremely low humidity levels necessary for specialized drying situations.
LGR dehumidifiers represent advanced refrigerant technology that achieves lower grain depression—the difference between incoming and outgoing moisture levels. This enhanced performance reduces drying time by up to 30% compared to conventional refrigerant units.
Factors That Affect Drying Time
The structural drying process timeline varies dramatically based on multiple interrelated factors. While minor incidents may dry in 3-5 days, severe damage can require 2-3 weeks of continuous drying.
Material Type and Porosity
Different materials absorb and release moisture at vastly different rates. Concrete can hold moisture for months, while hardwood flooring may dry in days. Insulation often requires removal rather than drying due to contamination and extended drying requirements. Material characteristics significantly influence the structural drying process timeline.
Porous materials like drywall, ceiling tiles, and carpeting absorb water quickly and can usually be dried if addressed within 48 hours. Semi-porous materials like wood and concrete take longer and may require specialized drying techniques. Non-porous materials like metal and glass don’t absorb water but can trap moisture through condensation.
Extent and Depth of Saturation
Surface moisture dries quickly compared to water that has penetrated deeply into structural components. Water that wicks up walls through capillary action or saturates subfloors requires more intensive drying than surface water on sealed flooring.
The water damage classification system reflects saturation severity. Class 1 (minimal absorption) may dry in 2-3 days, while Class 4 (specialty drying situations like hardwood, concrete, or deep saturation) commonly takes 1-3 weeks.
Temperature and Humidity Control
Warmer temperatures accelerate evaporation by increasing the air’s capacity to hold moisture. For every 10-degree increase in temperature, evaporation rates can double. However, excessive heat can damage materials or create safety hazards. Temperature and humidity control are critical variables in the structural drying process.
Lower relative humidity creates a greater moisture gradient between wet materials and the surrounding air, driving faster evaporation. Professional restoration maintains humidity between 30-50% during active drying, which may differ significantly from normal building conditions.
Airflow and Ventilation
Adequate air movement prevents moisture-saturated air from lingering near wet surfaces. The principle of vapor pressure dictates that moisture moves from areas of high concentration to low concentration. Without proper airflow, this process stalls even with dehumidification running.
Enclosed spaces like closets and cabinets require targeted airflow to prevent moisture trapping. Strategic placement of air movers creates air circulation patterns that reach all affected areas without creating dead zones.
Common Structural Drying Challenges
Even with professional equipment and expertise, certain situations present unique difficulties that extend drying time or require specialized approaches.
Hidden Moisture in Wall Cavities
Water often travels behind walls, accumulating in insulation and wall cavities where conventional drying equipment cannot reach. Thermal imaging reveals these hidden moisture pockets, but drying them requires either removing drywall or using injection drying systems. Addressing hidden moisture is one of the most challenging aspects of the structural drying process.
Injection systems insert drying tubes through small holes, delivering focused airflow directly into wall cavities. This minimally invasive approach preserves materials while ensuring thorough drying. However, it requires longer drying times than exposing cavities through demolition. Similar techniques are used in fire and smoke damage restoration where structural components need specialized drying.
Secondary Moisture Sources
Ongoing moisture intrusion sabotages drying efforts. Undetected leaks, condensation from HVAC systems, or continued seepage through foundations must be stopped before structural drying can succeed. Technicians investigate thoroughly to ensure the moisture source is eliminated.
Material Incompatibility
Some materials cannot be effectively dried or shouldn’t be retained after water exposure. Category 3 water (sewage) contamination requires removal of porous materials regardless of drying potential. Certain engineered wood products, laminate flooring, and modern composite materials may delaminate or warp even with proper drying.
Cold Weather Complications
Drying efficiency drops significantly in cold environments. Refrigerant dehumidifiers lose effectiveness below 60°F, and evaporation rates slow as temperature decreases. Winter restoration projects often require supplemental heating or desiccant dehumidifiers to maintain progress.
The Science Behind Moisture Removal
Understanding the psychrometric principles that govern drying helps explain why professional restoration achieves results that simple ventilation cannot match.
Vapor Pressure and Equilibrium
Moisture naturally migrates from areas of high vapor pressure (wet materials) to areas of low vapor pressure (dry air). This migration continues until equilibrium is reached—the point where material moisture content matches the surrounding air’s relative humidity. Understanding vapor pressure dynamics is essential to executing an effective structural drying process.
The dehumidification process maintains low vapor pressure in the air, preventing equilibrium and sustaining continuous evaporation from materials. Without active dehumidification, humidity quickly rises as moisture evaporates, slowing further drying dramatically.
Evaporation Rate Factors
Four primary factors control evaporation rates: temperature (higher accelerates evaporation), humidity (lower increases capacity for moisture), air movement (removes saturated air), and surface area (greater area increases evaporation). Professional drying optimizes all four simultaneously.
Specific Humidity and Grain Depression
Specific humidity measures the actual amount of moisture in air, while grain depression indicates how much moisture dehumidifiers remove. Professional equipment can achieve grain depressions of 70-100 grains per pound, creating the dry environment necessary for rapid structural drying.
Monitoring and Documentation Requirements
Professional restoration companies maintain detailed records throughout the structural drying process. This documentation serves multiple purposes: tracking progress, adjusting strategies, supporting insurance claims, and providing liability protection.
Daily Moisture Readings
Technicians measure moisture content at marked locations each day, creating a historical record of drying progress. These readings include both affected areas and unaffected reference points. When affected areas match reference readings, drying is verified complete. Daily readings provide objective data that tracks structural drying process effectiveness.
Multiple measurement types ensure accuracy. Surface readings detect moisture on accessible faces, while probe readings penetrate into materials. Some advanced moisture meters use radio frequency to detect moisture several inches deep without damaging materials.
Psychrometric Readings
Temperature, relative humidity, and dew point measurements document environmental conditions throughout drying. These metrics help technicians optimize equipment performance and identify problems before they impact drying progress.
Professional restoration software analyzes these readings automatically, generating reports that show drying trends and flag anomalies. This data-driven approach removes guesswork from the drying process.
Photographic Documentation
Comprehensive photos document initial damage, equipment placement, and restored conditions. Thermal imaging before and after drying provides visual proof that hidden moisture has been eliminated. This evidence becomes crucial if insurance questions arise or if secondary damage appears later.
| Documentation Type | Frequency | Purpose | Retention Period |
|---|---|---|---|
| Initial Assessment Report | Once (at start) | Damage extent, classification, scope | Permanent record |
| Equipment Placement Log | Each setup/change | Prove proper methodology | Duration of project |
| Daily Moisture Readings | Every 24 hours | Track drying progress | Permanent record |
| Psychrometric Data | Every 24 hours | Verify environmental conditions | Permanent record |
| Progress Photos | Daily or as needed | Visual documentation of work | Permanent record |
| Completion Certificate | Once (at completion) | Verify proper drying achieved | Permanent record |
What Property Owners Should Expect
Understanding the restoration process helps property owners prepare for disruption and recognize quality work. Professional building drying requires cooperation between restoration technicians and property occupants.
Noise and Disruption
Drying equipment generates significant noise—typically 60-75 decibels, comparable to normal conversation or background music. Air movers produce the most noise, while dehumidifiers contribute a lower-pitched hum. Expect continuous equipment operation 24 hours daily until drying completes. Understanding what to expect during the structural drying process helps property owners prepare appropriately.
Many restoration companies provide guidance on managing noise during occupied drying projects. Strategic equipment placement can minimize impact on sleeping areas, and technicians can adjust air mover speeds during evening hours if necessary.
Energy Consumption
Professional drying equipment draws considerable power. A typical residential drying setup may consume 3-7 kilowatt-hours daily. Insurance policies often cover electricity costs related to restoration, but confirm this coverage with your adjuster.
Technicians assess electrical capacity before setup to prevent overloading circuits. They distribute equipment across multiple circuits and may recommend temporarily unplugging non-essential appliances.
Access Requirements
Restoration technicians need regular access to affected areas for monitoring and equipment adjustments. Plan for daily visits lasting 15-30 minutes during active drying. Restricting access or moving equipment without approval can compromise results and void warranties.
Temperature and Humidity Changes
Active drying creates warmer, drier conditions than normal building environments. This temperature increase is intentional and beneficial for evaporation. However, occupants may find conditions uncomfortable. Dehumidification also removes moisture throughout the building, not just affected areas.
Professional vs. DIY Structural Drying
While minor water issues may be manageable without professional help, significant water damage requires specialized knowledge and equipment. Understanding this distinction prevents inadequate drying that leads to costly secondary damage.
When DIY Drying is Appropriate
Small, contained water events affecting non-porous surfaces can often be handled without professional restoration. Examples include small appliance leaks caught immediately, minor toilet overflows on tile floors, or condensation issues affecting limited areas.
Success requires prompt action (within 1-2 hours), complete water removal, adequate ventilation, and verification that no hidden moisture exists. Household fans and portable dehumidifiers can handle these minor situations if moisture hasn’t penetrated building materials.
When Professional Help is Essential
Professional restoration becomes necessary when water affects porous materials, covers significant areas (over 10 square feet), involves contaminated water, or impacts structural components. Hidden moisture requires detection equipment and expertise that homeowners don’t possess. A professional structural drying process ensures thorough moisture removal and prevents costly secondary damage. For businesses, commercial water damage restoration requires even more specialized approaches.
Insurance coverage also factors into this decision. Most policies require professional restoration to validate claims and ensure proper work. Attempting DIY drying may void coverage or create disputes about whether damage was properly addressed.
Equipment Capability Gaps
Consumer-grade equipment lacks the capacity and efficiency of professional restoration tools. A household dehumidifier might remove 30-50 pints daily, while commercial LGR units extract 100-200 pints. This performance difference translates to days or weeks of additional drying time.
Similarly, household fans move 1,000-1,500 CFM compared to 2,000-3,000 CFM for professional air movers. This increased airflow dramatically accelerates evaporation and prevents moisture from migrating to unaffected areas.
Quality Assurance in Structural Drying
Verifying proper moisture removal requires specific protocols and acceptance criteria. Property owners should understand these standards to evaluate restoration work quality.
Drying Standards and Goals
Industry standards require moisture content in affected materials to match unaffected reference areas. This comparative approach accounts for natural moisture variation in different materials and buildings. Absolute moisture readings alone don’t confirm proper drying.
Documentation should show consistent downward trending in all moisture readings. If readings plateau or increase, this indicates problems requiring investigation and correction.
Final Verification Methods
Completion verification uses multiple assessment tools. Surface moisture meters confirm accessible areas have dried properly, while infrared cameras scan for temperature anomalies indicating hidden moisture. Probe meters verify depth moisture in thick materials like concrete or multiple layers of drywall.
Professional restoration companies provide certificates of completion documenting final moisture readings and confirming proper drying standards were achieved. This certificate offers protection if future moisture issues arise.
Post-Drying Inspection
After equipment removal, a final inspection checks for secondary issues that may have been masked during drying. This includes examining flooring for warping, walls for bubbling, and materials for discoloration that might indicate hidden problems. During this phase, restoration professionals may also coordinate contents cleaning and restoration services for affected belongings.
Any concerning findings should be addressed before final sign-off. Restoration companies committed to quality welcome questions and provide clear explanations of findings.
Frequently Asked Questions
How long does the structural drying process typically take?
Most residential water damage dries in 3-7 days with professional equipment and monitoring. However, extensive damage, concrete floors, or cold weather can extend this to 2-3 weeks. The structural drying process timeline depends on material types, saturation depth, and environmental conditions. Your restoration company should provide a projected timeline after initial assessment.
Can I stay in my home during the drying process?
Most homeowners can remain in their property during structural drying, though conditions may be uncomfortable due to noise, temperature changes, and equipment placement. Severe damage or contaminated water may require temporary relocation for safety. Discuss your specific situation with your restoration company to determine the best approach for your circumstances.
What happens if moisture is left behind after drying?
Residual moisture creates ideal conditions for mold growth within 24-48 hours, causes wood rot, promotes structural deterioration, and generates musty odors. Hidden moisture often leads to secondary damage claims months after the initial incident. Professional drying with proper verification prevents these costly problems by ensuring complete moisture removal before restoration work begins.
How do professionals find hidden moisture in walls and floors?

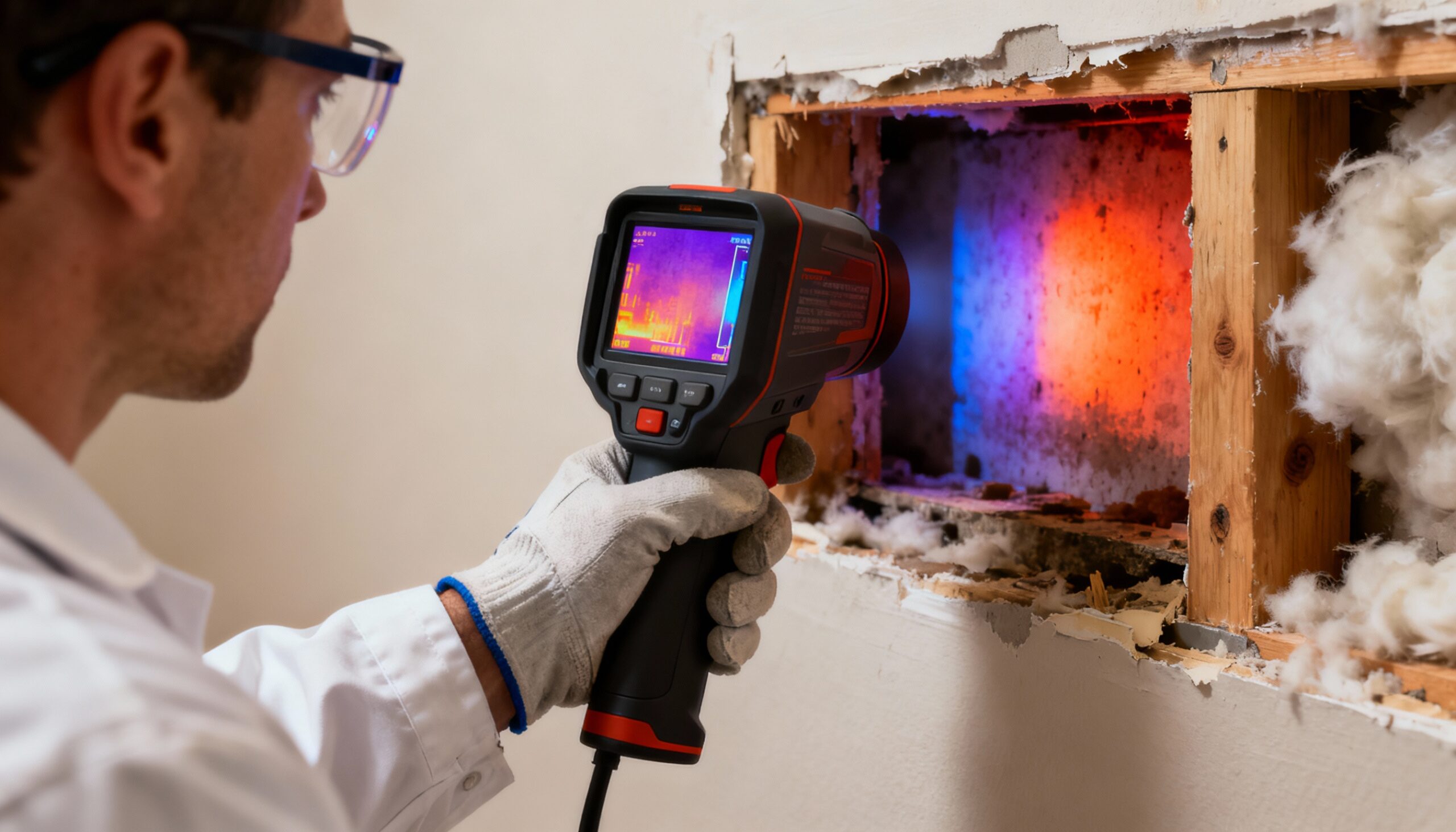

Restoration technicians use thermal imaging cameras to detect temperature variations indicating trapped moisture, penetrating moisture meters that read several inches into materials, and radio frequency meters that detect moisture without surface contact. These tools identify problem areas invisible to visual inspection, ensuring comprehensive moisture mapping before and during the drying process.
Will structural drying prevent all mold growth?
Proper structural drying completed within 48 hours of water exposure prevents new mold growth by eliminating the moisture mold requires. However, if mold colonies established before drying began, separate remediation may be necessary. Quick response and a thorough structural drying process are the best mold prevention strategies. Professional restoration companies monitor for signs of mold development during the drying process.
What’s the difference between water extraction and structural drying?
Water extraction removes standing and surface water using pumps and vacuums, addressing visible moisture. Structural drying removes water that has absorbed into building materials through controlled evaporation and dehumidification. Both processes are essential—extraction must happen first, but drying is necessary to prevent damage from moisture trapped in porous materials like drywall, insulation, and subflooring.
